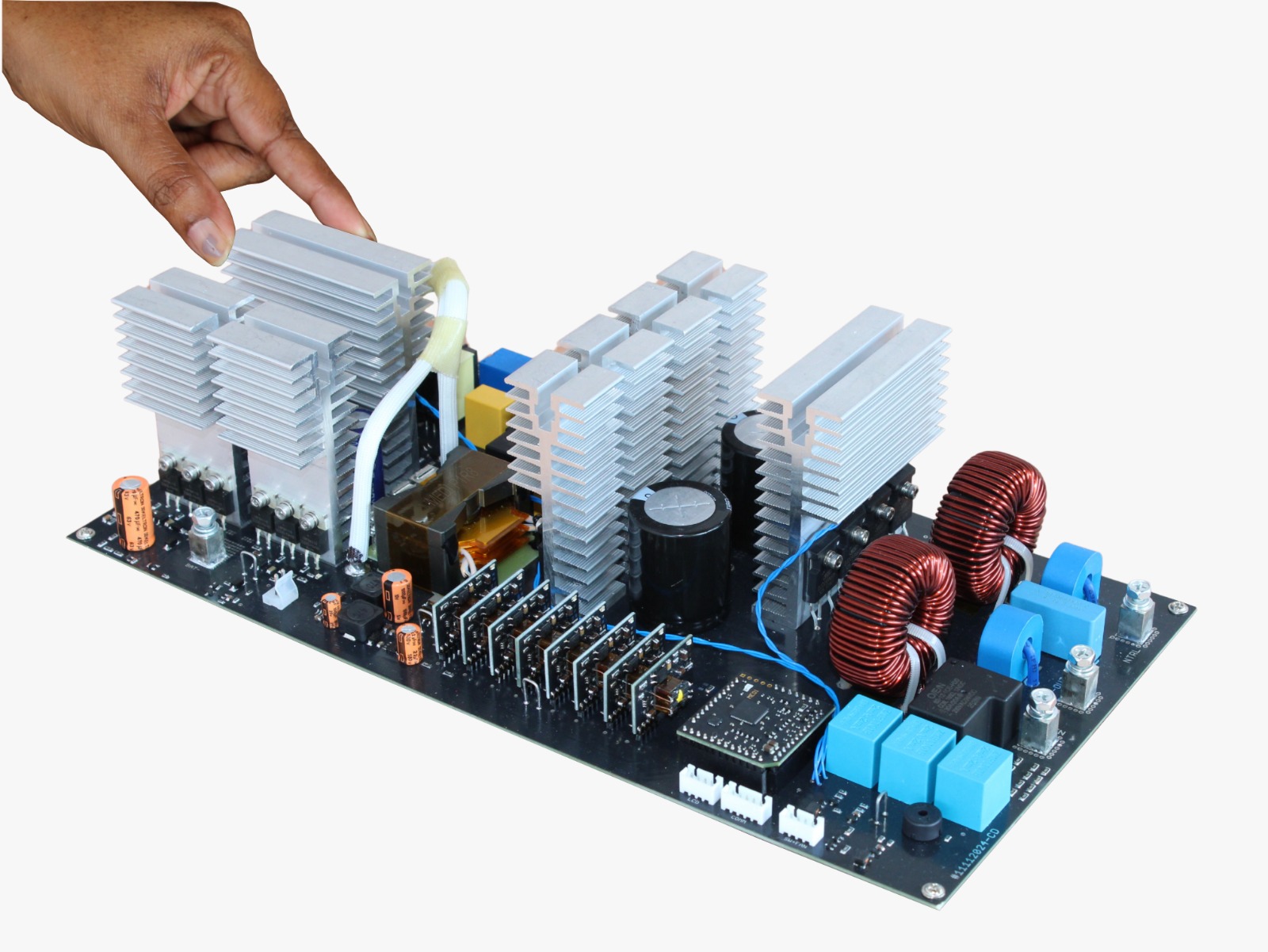

MEDI's Planar Inverter
- Efficiency >96% SiC based, 92% IGBT based
- 160Khz zero current zero voltage Resonance switching result in no switching losses, high efficiency & small size of magnetics
- Lithium battery charging algorithm
- Charging current upto 40A with Active Power Factor Correction (APFC) and Active Harmonic Filter (AHF)
- When solar charging current above 3A, mains charger standby option
- Synchronous rectified charger and Totem-Pole synchronous rectified APFC
- Charging Power Factor 0.99, Current harmonic <7%
- LCD will show solar charging Ampere, mains charging Ampere, AC OUTPUT/INPUT voltage, Battery V, battery full/low, Overload, short circuit etc
- Fast changeover in <2milli Second
- 100% galvanic isolation between battery and AC input & AC output

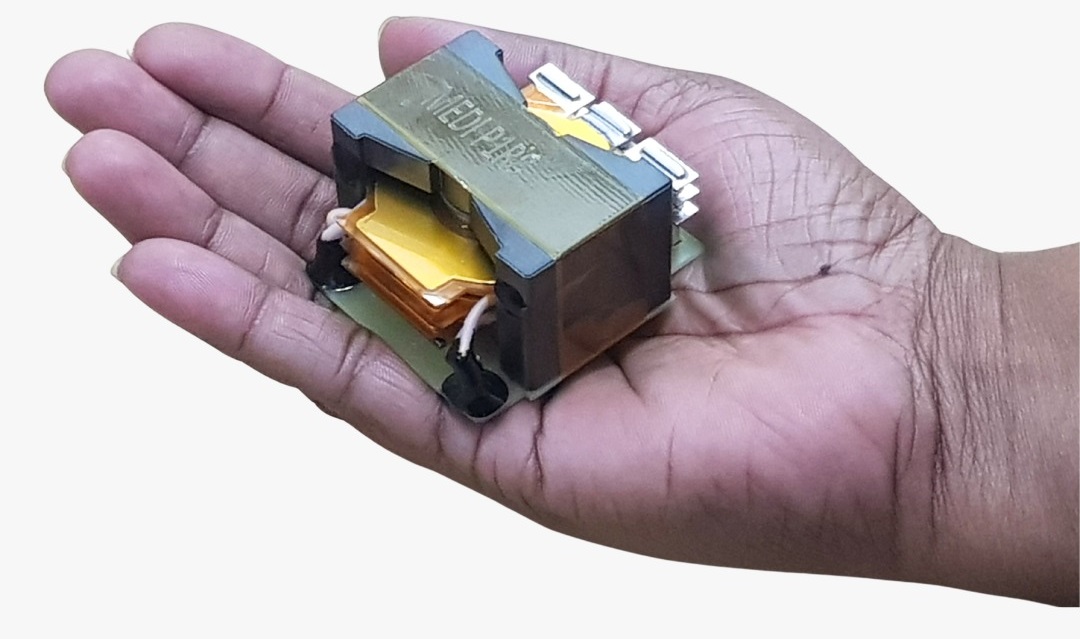

- Light weight 3KW PLANAR Inverter full product only 2.4 kg wall mountable and easy to transport (3KW transformer based Inverter 26kg)
